GM-1236306 Specialty Polyester-Modified Acrylate UV Resin
| Share | |
|---|---|
| Categories | UV Resins & Raw Materials |
| Brand | Gomin Industry Coating Wholesale Manufacturer |
| Model | GM-1236306 |
| Product Type | UV-Curable Resin (Oligomer) |
| Model | GM-1236306 |
| Chemistry | Specialty Polyester-Modified Acrylate |
| Functionality | 6 |
| Solid Content | 100% |
| Viscosity | 500-1000 mPa·s (60°C) |
| Acid Value | 0 mg KOH/g |
| Appearance | Colorless, Transparent Viscous Liquid |
| Applications | UV Varnish; UV Protective Coating |
| Packaging | 20 kg Plastic Bucket |
| Shelf Life | 12 Months (5-35°C, Dark, Sealed) |
GOMIN · UV RESINS & RAW MATERIALS
GM-1236306 Specialty Polyester-Modified Acrylate UV Resin
A 6-functional, 100% solids UV-curable resin for UV varnishes and UV protective coatings — rapid curing, non-yellowing and built for durable, high-clarity films.
What Is GM-1236306?
GM-1236306 is a specialty polyester-modified acrylate resin developed by Dalian Gomin Special Coating Co., Ltd. as a film-forming oligomer for 100% solids UV formulations. Its six-function structure builds a dense crosslinked network in a single pass under UV light, which is why formulators reach for it when a UV varnish or a UV protective coating must cure fast, stay clear, and survive heat, abrasion and boiling water. Supplied as a colorless, transparent viscous liquid, it blends cleanly into radical-cure systems without adding color or acid-related side reactions.
High crosslink density for hard, chemical-resistant films.
Solvent-free system supports low-emission UV formulations.
Viscosity per TDS; easy pumping and dosing when warmed.
Acid-free chemistry protects substrates and pigments.
Key Performance Features
Rapid Curing Speed

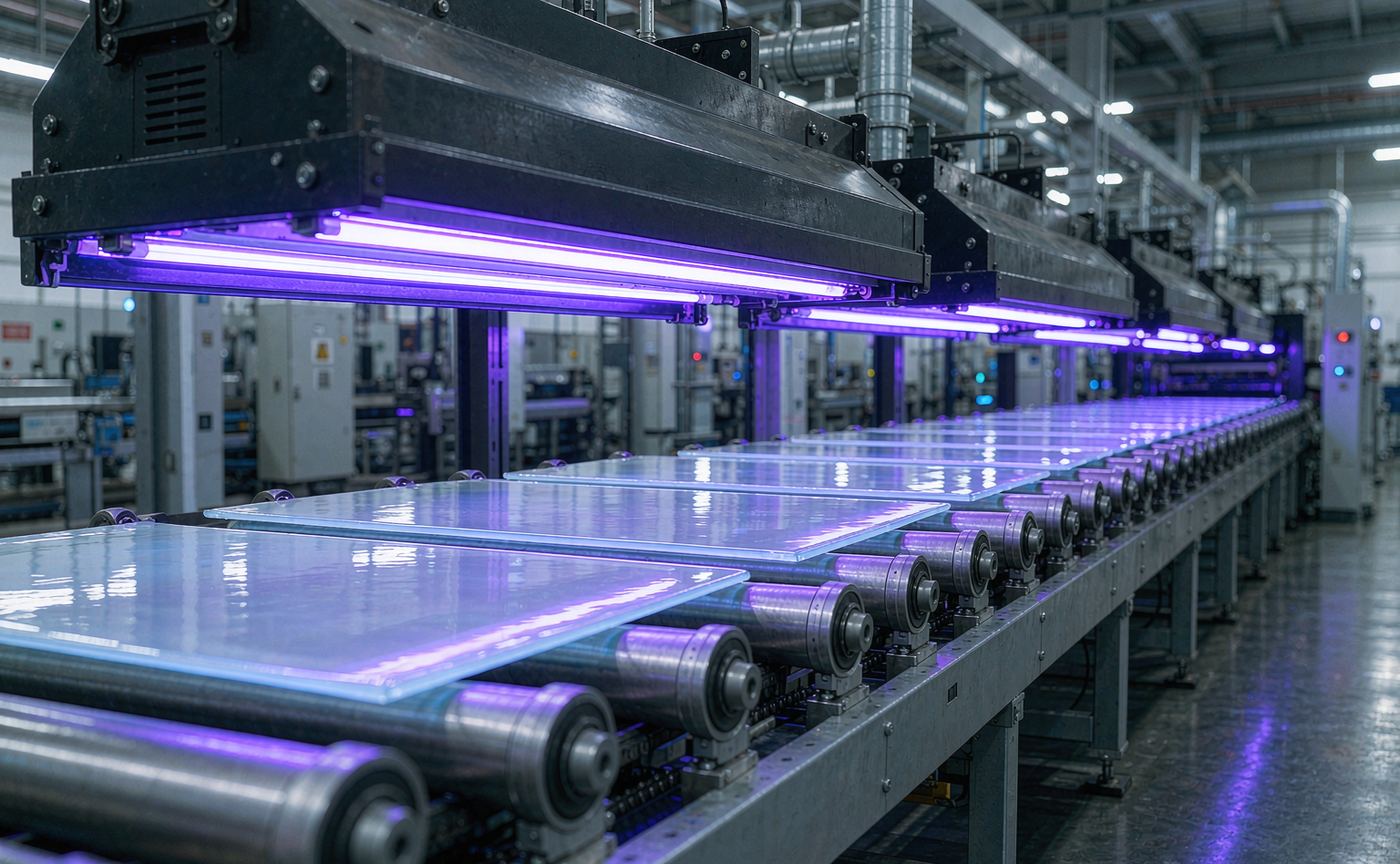

Acrylate functionality cures in seconds under UV lamps, keeping coating and varnish lines running at high web speeds.
High Temperature Resistance
The crosslinked polyester-acrylate network holds its properties in elevated-temperature service, where conventional films soften or haze.
Resistance to Yellowing
Colorless, transparent resin chemistry keeps cured films water-clear and preserves the appearance of light-colored substrates over time.
Wear Resistance
A tough, abrasion-resistant surface stands up to friction, handling and cleaning on coated parts and varnished surfaces.
Boiling-Water Resistance
Cured films resist exposure to boiling water, supporting wash-intensive and hot-fill environments without whitening or loss of gloss.
100% Solids, Solvent-Free
No volatile content means near-zero shrinkage from evaporation, thicker single-pass films and cleaner workshop air.
Technical Specifications
| Product Code | GM-1236306 |
|---|---|
| Chemistry Type | Specialty polyester-modified acrylate resin |
| Appearance | Colorless, transparent and viscous liquid |
| Viscosity | 500–1000 mPa·s (60 °C, as stated on the TDS) |
| Solid Content | 100% |
| Acid Value | 0 mg KOH/g |
| Functionality | 6 |
| Application Fields | UV varnish; UV protective coating |
Typical values from the GOMIN technical data sheet, provided for guidance only and not to be read as a product specification.
Applications
UV Varnish

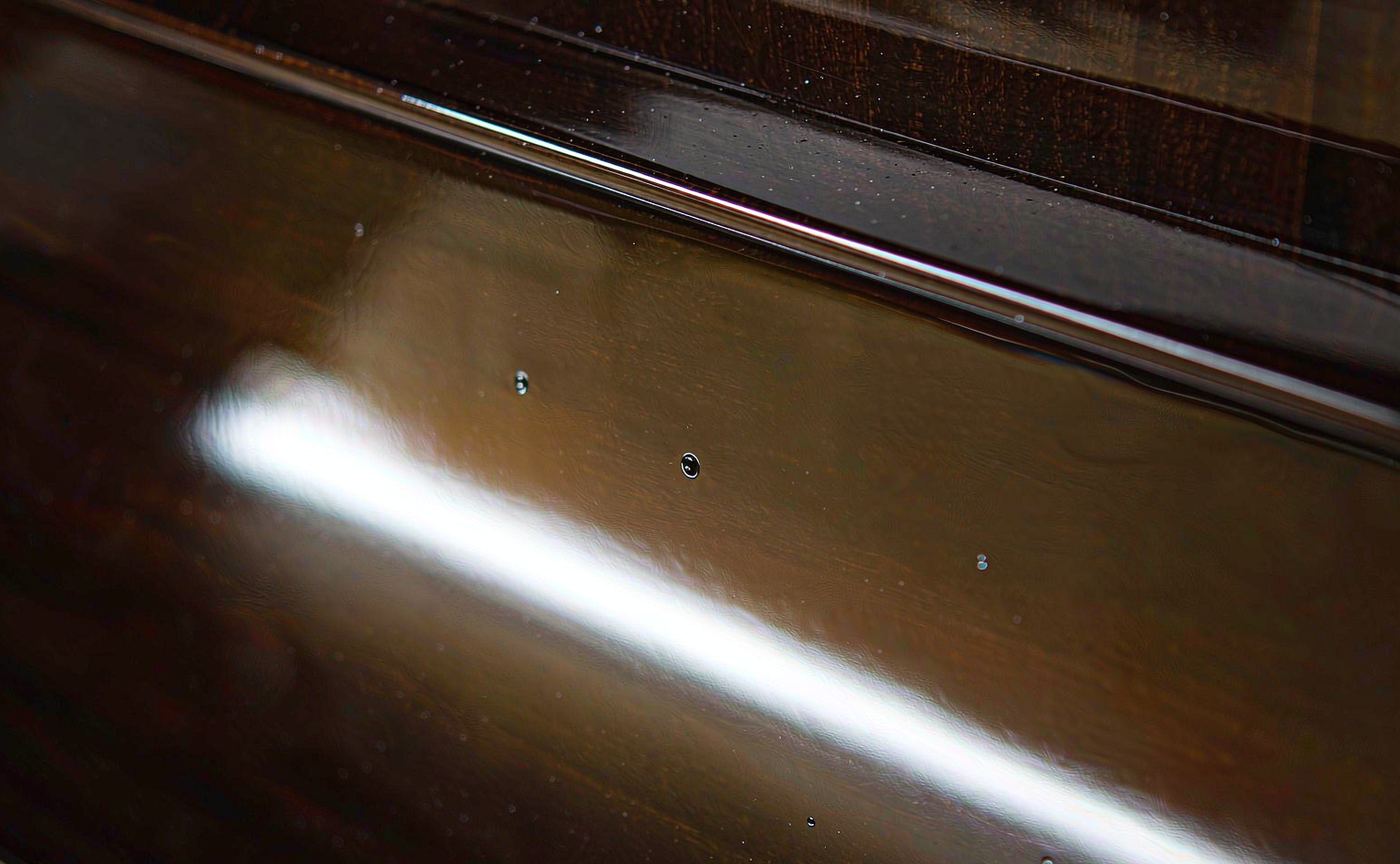

Use GM-1236306 as the backbone oligomer of high-gloss UV varnishes. Fast cure at the lamp, high crosslink density after cure and a colorless base deliver clear, hard, non-yellowing finishes.
UV Protective Coating
In protective UV coatings, the six-function network combines heat resistance, abrasion resistance and boiling-water resistance, keeping the protective film intact under demanding service conditions.
Packaging, Storage & Handling
| Packaging | 20 kg plastic bucket |
|---|---|
| Shelf Life | 12 months |
| Storage Conditions | Room temperature 5–35 °C, store in a dark and sealed container |
Handling Notes
- Keep containers sealed and away from direct sunlight and UV sources until use.
- Uncured acrylate resins can irritate skin and eyes; wear gloves and safety glasses and ensure good ventilation.
- Warm gently and mix uniformly before dosing; avoid moisture pickup and contamination during storage.
Frequently Asked Questions
What is GM-1236306 used for?
It is a 6-functional specialty polyester-modified acrylate UV resin used as the film-forming oligomer in UV varnishes and UV protective coatings.
Why does functionality of 6 matter?
A higher functionality builds a denser crosslinked network during UV curing, which translates into harder films, better chemical and abrasion resistance and improved heat and boiling-water performance.
Is the resin really 100% solids?
Yes. Solid content is 100%, so the system is solvent-free: what you coat is what cures, with minimal evaporative loss and low formulation emissions.
What is the viscosity and how is it handled?
The TDS lists 500–1000 mPa·s at 60 °C. Warm gently to reduce viscosity for pumping and dosing, then meter it into the formulation as usual for radical-cure oligomers.
How should GM-1236306 be stored?
Store in the original sealed container at 5–35 °C, protected from light. Shelf life is 12 months under these conditions.
What packaging is supplied?
GM-1236306 is supplied in 20 kg plastic buckets. Contact GOMIN for sample quantities, TDS/SDS documents and volume pricing.
Request GM-1236306 TDS, Samples & Pricing
Tell us your UV varnish or protective coating target and our technical team will recommend the right formulation approach with GM-1236306.
