Detail Information
Resin-Free · Universal · Industrial Grade
High-Concentration
Universal Color Paste
for Coatings
GOMIN's resin-free pigment dispersions deliver maximum compatibility across waterborne and solvent-based systems — nano-ground for superior gloss, zero flocculation, and 5+ years outdoor durability.
7–8
Lightfastness grade (max 8)
5+
Years outdoor weathering
280°C
Maximum heat resistance
0
Resin content — zero conflicts
Why GOMIN
Six Pillars of Performance
Engineered for production environments where compatibility, consistency, and longevity are non-negotiable.
Zero Resin Content
No resin binders means no compatibility clashes. A single paste grades across waterborne, solvent-based, and specialist resin systems.
Nano-Ground Dispersion
A tandem coarse-then-fine grinding process achieves sub-micron particle uniformity. The result: exceptional gloss, transparency, and zero settling or flooding.
Superior Weatherfastness
Lightfastness grades 7–8 and weatherfastness grades 4–5 ensure colour stability through outdoor exposure exceeding five years — no fading, no chalking.
High-Temperature Stability
Selected grades withstand stoving and baking from 200°C to 280°C without colour shift — critical for automotive components, hardware, and electronics coatings.

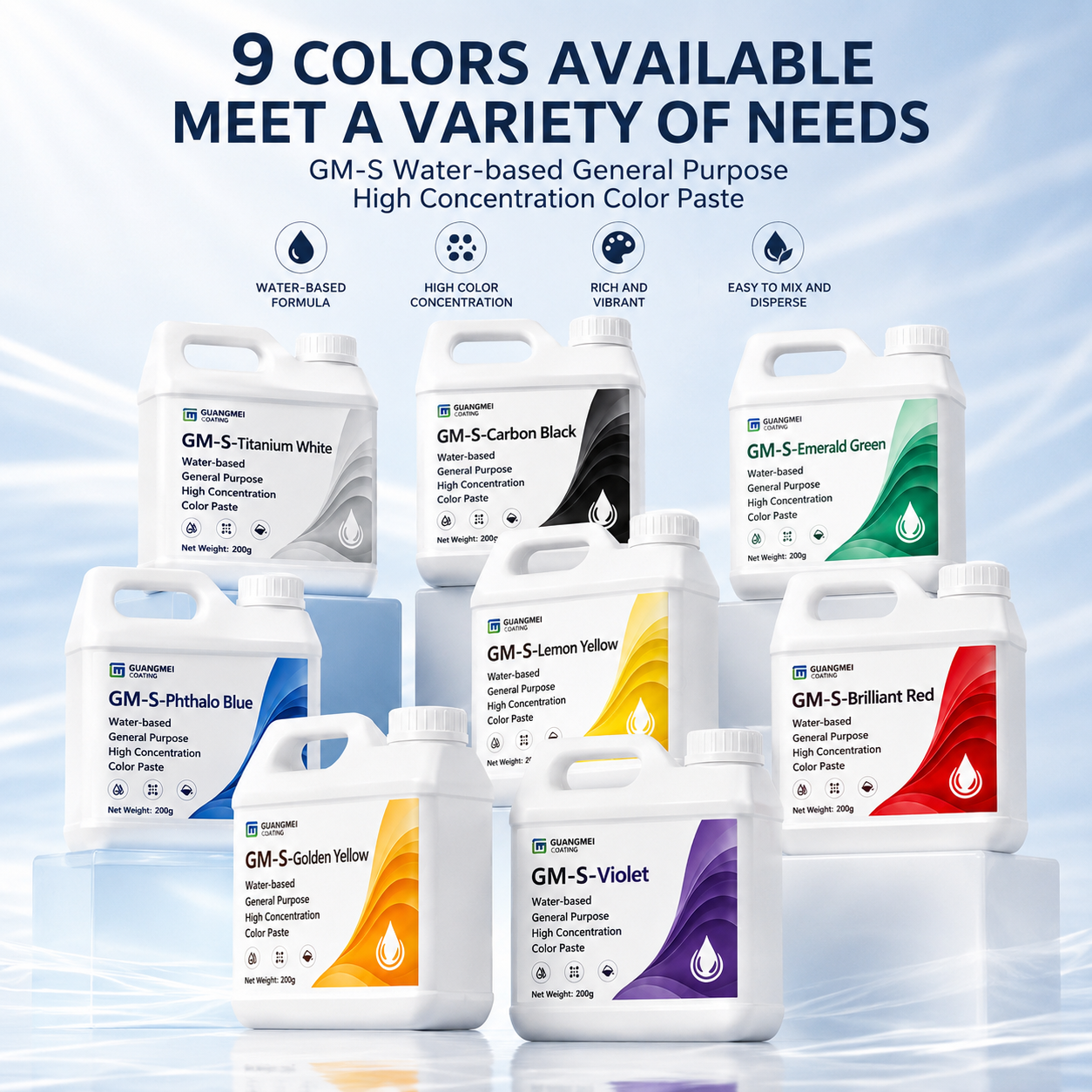

Full Colour Range
Carbon black, titanium white, organic yellow, red, ultramarine, phthalo blue & green, and permanent violet. Custom PANTONE and RAL matching available on request.
Washable-Coating Clean
No resin residue after washing — making GOMIN paste the preferred choice for children's toy lacquers, medical device coatings, and washable architectural finishes.
Technical Specifications
Tested to GB/T 21473-2008. Full shade and 1:10 TiO₂ dilution ratings both shown.
| Product Code & Name | Pigment Index | Pigment Content | Heat Resistance | Density (g/cm³) | Lightfastness | Weatherfastness | Acid | Alkali |
| GM-0717 Carbon Black | PBK 7 | 25% | 1200 °C | 1.08 | 8 / 5 | 5 | 9 | 9 |
| GM-0706 Titanium White | PW 6 | 75% | 500 °C | 1.98 | 8 / 5 | 5 | 9 | 9 |
| GM-0705 Permanent Golden Yellow | PY 83 | 25% | 220 °C | 1.08 | 7 / 4 | 4 | 5 | 5 |
GM-0706 Fast Bright Yellow | PY 151 | 25% | 220 °C | 1.08 | 8 / 5 | 5 | 5 | 5 |
GM-0711 Permanent Red (Y-shade) | PR 170 F5RK | 25% | 220 °C | 1.07 | 8 / 4 | 4 | 5 | 5 |
GM-0712 Ultramarine Blue | PB 29 | 55% | 380 °C | 1.31 | 8 / 5 | 5 | 9 | 9 |
GM-0713 Phthalo Blue | PB 15:3 | 25% | 220 °C | 1.07 | 8 / 5 | 5 | 5 | 5 |
GM-0714 Phthalo Green | PG 7 | 25% | 220 °C | 1.06 | 8 / 4 | 4 | 5 | 5 |
GM-0715 Permanent Violet | PV 23 | 15% | 300 °C | 1.04 | 8 / 5 | 5 | 5 | 5 |
Compatible Resin Systems
Because GOMIN pastes contain no resin, they bond seamlessly with all major coating chemistries — no reformulation required.
Waterborne Systems
Acrylic
Alkyd
Styrene-Acrylic
Silicone-Acrylic
Epoxy
Polyurethane
Fluorocarbon
Solvent-Based Systems
Solvent Acrylic
Alkyd
Styrene-Acrylic
Silicone-Acrylic
Epoxy
Polyurethane
Fluorocarbon
Polysiloxane
Recommended Addition Rates
Addition rates vary by shade depth and coating type. Never exceed 10% of total coating weight to avoid adhesion loss.
| Waterborne | Solvent-Based | Baking / Electronics | Washable Coatings |
| Light (25% TiO₂)
0.1 – 1.0% | Light
0.2 – 1.5% | Light
0.3 – 1.2% | Light
0.1 – 0.8% |
| Medium
1.0 – 3.0% | Medium
1.5 – 4.0% | Medium
1.2 – 3.5% | Medium
0.8 – 2.5% |
| Deep (0 TiO₂)
3.0 – 8.0% | Deep
4.0 – 10.0% | Deep
3.5 – 9.0% | Deep
2.5 – 7.0% |
Application Areas
From architectural exteriors to precision electronics, GOMIN colour paste delivers consistent performance across demanding sectors.
Construction & Architecture
Exterior wall coatings, floor epoxy, bridge anti-corrosion systems. Long-term UV and weathering resistance critical.
Automotive & Stoving
Automotive component coatings, hardware baking finishes. Formulated for colour stability through 70–280°C cure cycles.
Electronics & 3C
Smartphone casings, peripheral devices, precision electronics. Requires food-grade cleanliness in mixing equipment.
Toys & Medical Devices
Washable coatings for children's products and medical surfaces. Zero resin residue guarantees post-wash purity.
Furniture & Flooring
Wood lacquer tinting, stain base, and floor coating systems. Exceptional transparency and gloss enhancement.
Industrial Equipment
Machinery coatings, plastic-substrate finishes, and industrial re-coating projects demanding chemical resistance.
Technical Questions
Common formulation and application questions — answered by our technical team.
What does "resin-free" mean for compatibility?
Conventional colour pastes contain a resin binder that must match the host coating's chemistry. GOMIN's resin-free formula eliminates that constraint entirely — the paste integrates into acrylic, epoxy, alkyd, polyurethane, fluorocarbon, and polysiloxane systems without reformulation or compatibility testing beyond a standard 1–2% tint trial.
How should I disperse GOMIN colour paste into my coating?
Stir the paste for 5–10 minutes before use to ensure no sedimentation. Add paste slowly at the vortex edge of the mixing vessel — primary shade first, secondaries after. For waterborne systems, disperse at 800–1200 rpm for 10–15 minutes; for solvent-based, 600–1000 rpm for 8–12 minutes. Filter through 150–250 mesh before application.
Can I use GOMIN paste in UV-curable coatings?
Yes. GOMIN's resin-free formulation is compatible with UV-curable (photo-curable) resin systems. Dalian Gomin Special Coating is a specialist UV coating manufacturer, and the paste range is specifically engineered with UV chemistry in mind. Conduct a curing performance check at your exact UV dose and initiator loading before full production.
What is the shelf life and storage condition?
Unopened: 24 months stored at 0–35°C, away from direct light, moisture, and ignition sources. Opened: use within 3 months. Mild sedimentation after prolonged storage is normal — thorough stirring restores performance fully.
Can water-based and solvent-based colour pastes be mixed?
No. Mixing waterborne and solvent-based colour pastes will cause emulsion breakdown and ruin the batch. Keep dedicated tools for each system type and label containers clearly to prevent cross-contamination.
